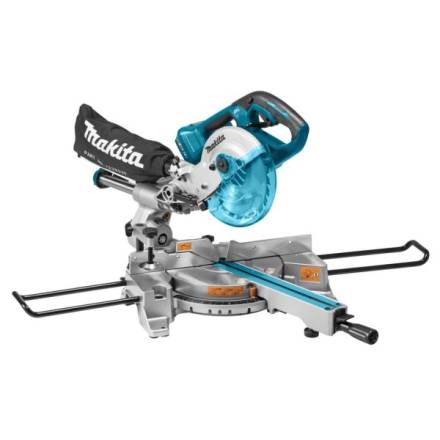

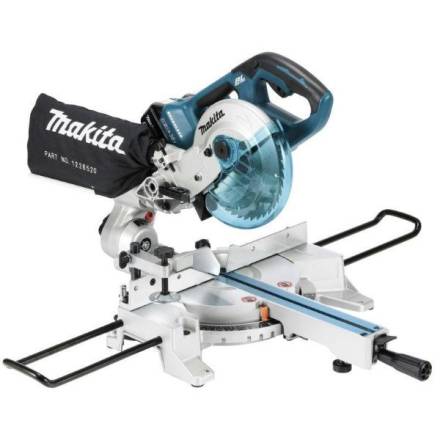

Makita DLS714NZ 190mm Twin 18V LXT Brushless Slide Compound Mitre Saw - Body Only

Summary

The Makita DLS714NZ is a 190mm cordless sliding compound mitre saw designed for professional site use. It is powered by two 18V Li-ion batteries in series, delivering performance comparable to AC mains-powered models. Supplied body only, it is fully compatible with Makita's LXT battery platform.

Features

• Two 18V Li-ion batteries work in series to supply energy to the powerful 36V DC brushless motor drive system.
• Automatic Torque Drive automatically adjusts cutting speed according to load conditions, ensuring the optimum cut at the best operational speed.
• Double sliding mechanism makes the saw lighter and more compact, requiring less workspace and allowing quick storage and easy transport between job sites.
• Features soft-start, battery fuel gauge, electronic blade brake, and a soft elastomer carry grip.
• LED indicator panel displays battery fuel level and indicates automatic speed control status.
• Battery protection circuit guards against damage from overdischarge, high temperature, and overload current.
• Single bevel facility allows 45deg bevel to the left, with 5deg to the right for minor corrections.
• Cuts up to 300mm in a single pass.

Specifications

• Blade Diameter: 190mm (7-1/2")
• Blade Bore: 20mm
• Voltage: 2 x 18V (36V total)
• No-Load Speed: 5,700 rpm
• Max Cutting Capacity at 90deg: 52 x 300mm
• Max Cutting Capacity at 45deg: 25 x 300mm
• Max Mitre Angle: 47deg left / 57deg right
• Max Bevel Angle: 45deg left / 5deg right
• Weight (without battery): 13.5 kg
• Dimensions (L x W x H): 655 x 430 x 458mm

What's Included

• 190mm TCT saw blade, dust bag, holder set, hex wrench, vertical vice, and triangular rule.
• Body only - batteries and charger not included.
