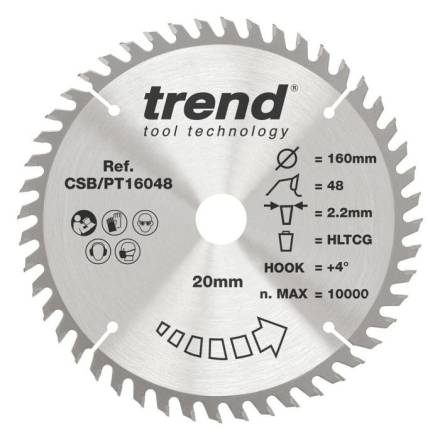

Trend Laminate/HPL Circular Saw Blade 160mm x 20mm x 48T

Summary

The Trend CSB/PT16048 is a tungsten carbide tipped circular saw blade from the CraftPro range, engineered specifically for clean, chip-free cutting in laminate, HPL and resin-based sheet materials. Suited to installers, kitchen fitters, joiners and cabinetmakers, it delivers a super-fine finish in circular, plunge and table saws. Its 160mm diameter and 20mm reamed bore make it directly compatible with popular plunge saws including the Festool TS55.

Features

• Triple chip ground (TCG) tooth form with +4deg hook for an ultra-fine finish in hard, abrasive materials
• 48-tooth high tooth count reduces feed and cutting speed for a clean, controlled cut
• Microgranular tungsten carbide tips (TCT) for optimum edge retention and long service life
• Silverbraze bonding ensures TCT tips are secured firmly to the blade body
• Precision ground alloy steel plate body hardened and tempered to maintain flatness and minimise deflection under load
• Expansion slots improve heat dissipation, minimise vibration and help prevent kick-back
• Reamed 20mm bore ensures precise spindle fit for smooth, accurate running
• Blade information etched to EN847 safety standard for traceability

Specifications

• SKU: CSB/PT16048
• Diameter: 160mm (6-1/4 inch)
• Bore: 20mm
• Number of Teeth: 48
• Kerf: 2.2mm
• Plate Thickness: 1.6mm
• Tooth Form: HLTCG (Triple Chip Ground)
• Hook Angle: +4deg
• Max Speed: 10,000 rpm
• Cut Finish: Super Fine
• Type: Panel Trimming / Laminate and HPL
• Colour Code: Purple
• Compliance: EN847

What's Included

• 1 x Trend CSB/PT16048 Circular Saw Blade
