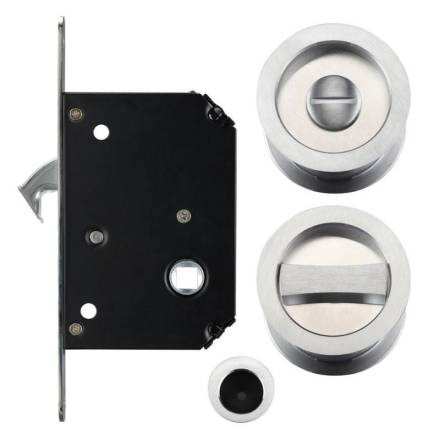

Zoo Hardware Fulton and Bray FB81SC Sliding Door Lock Set Satin Chrome

Summary

The Zoo Hardware Fulton and Bray FB81SC is a satin chrome sliding door lock set from the Fulton and Bray range, specifically engineered for sliding and pocket doors in bathroom and toilet applications. The hook bolt lockcase is operated by an internal thumbturn and includes an emergency external coin release, providing both convenience and security. Suitable for doors 35-45mm thick, it is equally suited to left- or right-handed sliding doors.

Features

• Hook bolt lockcase secured by internal thumbturn - throws and retracts via an 8mm spindle
• External emergency coin release for access from outside in an emergency
• Flush-fitting internal handle with a flush finger pull for comfortable operation
• Supplied with a finger edge pull socket for pocket doors - recessed into the leading edge to allow the door to be drawn out of the wall recess
• Suitable for left- or right-hand sliding doors
• Satin chrome finish for a sleek, contemporary appearance
• Tested to BS EN 1634-1
• Not suitable for bifold doors
• Sold as a complete set including fixings and spindle bar

Specifications

• SKU: FB81SC
• Finish: Satin Chrome
• Door Thickness: 35-45mm
• Lockcase Width: 70mm
• Backset: 50mm
• Rose Diameter (internal handle): 60mm
• Edge Pull Rose Diameter: 29mm
• Spindle: 8mm
• Standard: BS EN 1634-1
• Handed: Suitable for left or right hand

What's Included

• Hook bolt lockcase body
• Flush-fitting internal thumbturn handle
• External emergency coin release
• Finger edge pull socket
• Spindle bar
• Fixings
