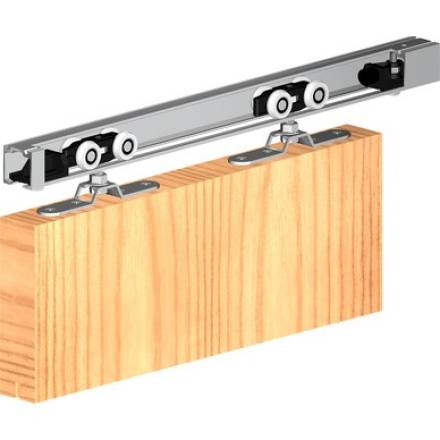

Rothley Herkules 120 Single Sliding Door System 1500mm Opening 120kg

Summary

The Rothley Herkules 120 is a heavy-duty, top-hung single sliding door system designed for room dividing doors up to 1500mm wide and weighing up to 120kg. Suitable for domestic and light commercial applications, it accepts timber or MDF door panels and delivers smooth, quiet operation through precision ball-bearing carriage wheels. The 3000mm pre-drilled aluminium track can be ceiling/soffit mounted as standard, or wall-face mounted with optional wall brackets (sold separately).

Features

• Heavy-duty top-hung sliding system rated to 120kg maximum door weight
• Pre-drilled aluminium track - 3000mm length for a 1500mm door opening
• Hangers with ball-bearing rollers for smooth, quiet, long-lasting operation
• Anti-jump system keeps wheels running smoothly at all times
• Clear polycarbonate bottom guide - virtually invisible once installed
• Track suitable for soffit/ceiling mounting as supplied; wall-face mounting available with optional wall brackets
• Compatible with timber or MDF door panels (minimum 22mm thickness)
• Thoroughly tested to over 100,000 cycles in accordance with BS EN 1527
• Soft-close 'Silent-Stop' damper kit available separately
• Supplied complete with all components, fixings, and installation guide

Specifications

• SKU: SD/HS1230
• Track Length: 3000mm
• Door Opening Width: 1500mm
• Maximum Door Weight: 120kg
• Minimum Door Thickness: 22mm
• Maximum Door Size (W x H x Th): 1500mm x 2040mm x 50mm
• Track Material: Pre-drilled aluminium
• Standard Mounting: Ceiling / soffit (wall mounting requires optional brackets)
• Bottom Guide: Clear polycarbonate
• Standard: BS EN 1527 (tested to 100,000+ cycles)

What's Included

• 3000mm aluminium sliding track
• Door hangers with ball-bearing carriage wheels
• Clear polycarbonate bottom guide
• All fixings and installation guide
