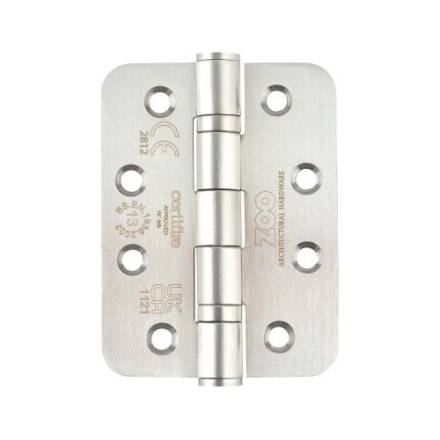

Zoo Hardware Grade 13 Ball Bearing Hinge Radius 102 x 76 x 3mm Satin Stainless Steel - Pair

Summary

The Zoo Hardware ZHSS243RS is a CE Grade 13 rated ball bearing hinge in Grade 201 satin stainless steel with radius corners, measuring 102 x 76 x 3mm. Sold as a pair complete with matching screws, it is designed for commercial and residential fire door applications where smooth, quiet operation and long-term durability are essential. Its fire-tested credentials make it suitable for use on timber and steel fire doors across a wide range of resistance periods.

Features

• CE Grade 13 tested to BS EN 1935:2002 - suitable for the most demanding door applications
• Successfully fire tested to BS EN 1634-1: suitable for timber fire doors up to 120 minutes and steel fire doors up to 240 minutes
• Grade 201 stainless steel construction for corrosion resistance and durability
• Radius corner design for a clean, contemporary finish
• Satin stainless steel finish - low-sheen, professional appearance
• Ball bearing mechanism ensures smooth and quiet operation
• Supplied with fire-rated matching screws
• 3 hinges per door recommended for full fire door compliance
• Available in alternative finishes including polished stainless steel; square corner variant also available (ZHSS243S)

Specifications

• SKU: ZHSS243RS
• Dimensions: 102 x 76 x 3mm (4" x 3")
• Material: Grade 201 stainless steel
• Finish: Satin stainless steel
• Corner style: Radius
• Grade: CE Grade 13 - BS EN 1935:2002
• Fire rating: BS EN 1634-1 (timber fire doors up to 120 min; steel fire doors up to 240 min)
• Sold as: Pair

What's Included

• 1 x pair of Grade 13 ball bearing hinges (2 leaves)
• Matching fire-rated screws
