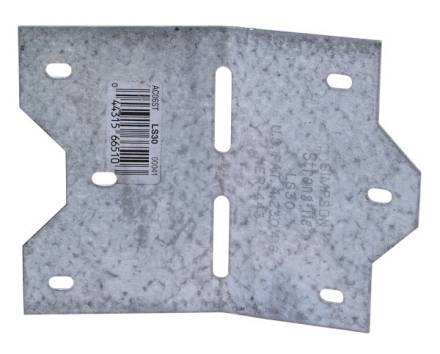

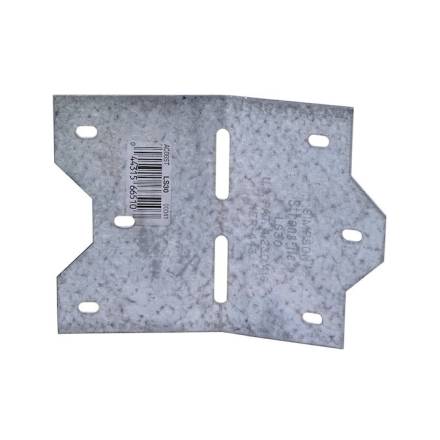

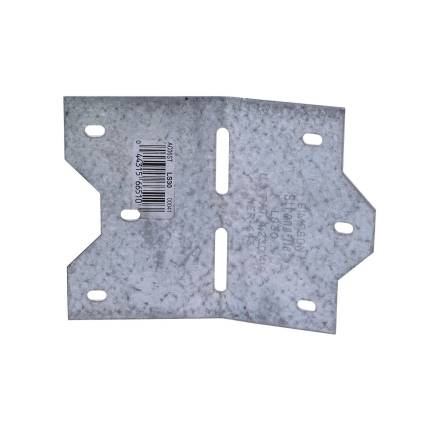

Simpson Strong-Tie LS30 Skewable Reinforcing Angle 57 x 57 x 86mm

Summary

The Simpson Strong-Tie LS30 is a load-rated skewable reinforcing angle designed for wood-to-wood structural connections. Field-adjustable to suit a wide range of framing configurations, it is a cost-effective alternative to fabricated clip angles for applications such as connecting roof rafters to hip rafters. Manufactured from 18-gauge G90 galvanised steel, it delivers reliable corrosion resistance for interior dry-service use.

Features

• Field-adjustable from 0deg to 135deg, allowing connection of members intersecting at a variety of angles
• Load-rated skewable design - a cost-effective alternative to field-fabricated clip angles
• Well-defined fastener hole locations; tested to account for connection eccentricities
• 18-gauge steel construction for durability and structural integrity
• G90 galvanised finish for corrosion resistance in interior applications
• Bend one time only in the field to the required configuration prior to installation
• Joist must be constrained against rotation (e.g. solid blocking) when a single LS is used per connection

Specifications

• Model: LS30
• Dimensions: 57 x 57 x 86mm (approx. 3-3/8 in.)
• Gauge: 18-gauge steel
• Finish: G90 Galvanised (zinc)
• Adjustability: 0deg to 135deg
• Fasteners: 10d common nails or #9 x 1-1/2 in. Strong-Drive SD screws
• Load conditions: F1 and F2 rated

What's Included

• 1 x Simpson Strong-Tie LS30 Skewable Reinforcing Angle
