Simpson Strong-Tie SNRK75 Solid Joist Notch Reinforcement Kit - Pack of 5

Summary

The Simpson Strong-Tie SNRK75 Solid Joist Notch Reinforcement Kit is an engineered solution for restoring the structural integrity of solid timber joists that have been notched to accommodate plumbing pipes and electrical cables. Supplied as a pack of five complete bracket sets, it is suited to both new-build floors and retro-fit installations. The kit also shields subfloor services from accidental damage caused by fixings driven from above.

Features

• Reinforces solid timber joists at notch points, recovering up to 75% of original joist performance (195x47mm joist with 45x45mm central notch, tested to BS EN 408)

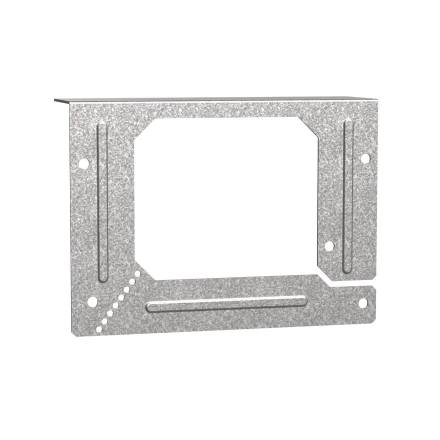

• Engineered steel bracket with a bendable leg for easy positioning around in-situ pipework and cables without disturbing installed services
• Top plate covers the notch and provides an early warning barrier against screws or nails accidentally penetrating pipes or cables from above
• Suitable for retro-fit to existing floors or installation during new construction in the same short time frame
• Manufactured from pre-galvanised mild steel for corrosion resistance
• One kit covers up to five notched floor joists - ideal for bathroom subfloor refurbishments
• Use supplied fasteners only to ensure rated performance

Specifications

• Product code (bracket): SNRB75
• Kit code: SNRK75
• Material: Pre-galvanised mild steel
• Bracket thickness (t): 1.2mm
• Dimension A: 150mm
• Dimension B: 109mm
• Dimension C: 45mm
• Dimension E: 76mm
• Dimension F: 90mm
• Fastener holes: 5 x dia 5mm
• Pack quantity: 5 brackets

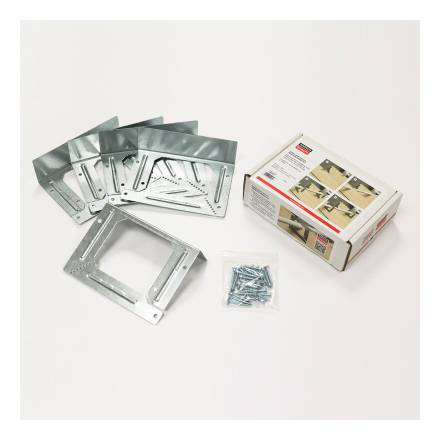

What's Included

• 5 x SNRB75 Solid Joist Notch Reinforcement Plates
• 28 x Simpson Strong-Tie 4x30mm connector screws
