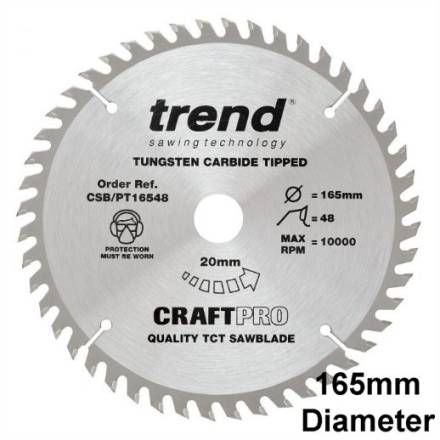

Trend Laminate/HPL TCT Circular Saw Blade 165mm x 20mm Bore x 48T

Summary

The Trend CSB/PT16548 is a tungsten carbide tipped circular saw blade engineered for super-fine finish cutting of laminated and resin-based materials. Designed for use in circular, plunge and table saws, it is the go-to blade for tradespeople and joiners working with laminated chipboard worktops, veneered panels and compact laminate. The triple chip ground tooth geometry and high tooth count ensure clean, chip-free results in demanding hard materials.

Features

• Triple chip ground (TCG) tooth form with +4deg hook angle delivers an ultra-fine finish in hard and abrasive materials
• High tooth count (48T) reduces feed and cutting speed for a clean, controlled cut
• Microgranular tungsten carbide tips (TCT) for optimum edge retention and extended blade life
• Precision ground alloy steel plate body maintains flatness throughout the cut
• Body hardened and tempered to minimise deflection under load
• Expansion slots improve heat dissipation, minimise vibration and help prevent kick-back
• Reamed bore ensures precise fit to spindle
• Silverbraze bonding secures tip firmly to body
• Laser-etched blade information to EN847 safety standard for traceability
• Compatible with plunge saws including DeWalt DWS520, Makita SP6000 and Bosch GKT 55 GC

Specifications

• SKU: CSB/PT16548
• Blade Diameter: 165mm (6-1/2")
• Bore: 20mm
• Number of Teeth: 48
• Tooth Form: Triple Chip Ground (HLTCG)
• Hook Angle: +4deg
• Kerf: 2.2mm
• Plate Thickness: 1.6mm
• Colour Code: Purple
• Type: Panel Trimming / Laminate and HPL
• Cut Finish: Super Fine
• Standard: EN847

What's Included

• 1 x Trend CSB/PT16548 Laminate/HPL Circular Saw Blade 165mm x 20mm x 48T
