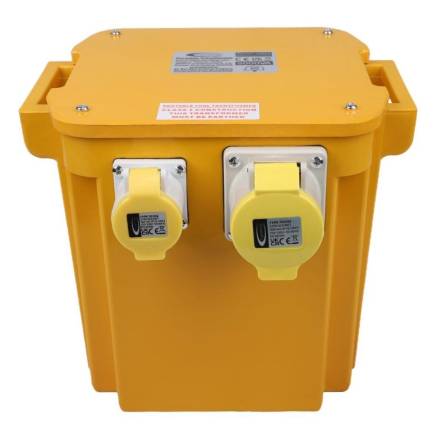

Connexion 5kVA 110V Site Transformer 2x16A and 1x32A Outlets

Summary

The Connexion 5kVA 110V Step-Down Site Transformer (Part No. 10962) is a heavy-duty portable transformer designed for construction sites, workshops, and industrial environments. It steps down 230V AC single-phase mains to a centre-tapped, star-point earthed 110V AC output, providing safe power for tools, machinery, and lighting. Built in a robust GRP case, it is engineered to withstand the rigours of daily site use.

Features

• Steps down 230V AC mains input to 110V AC output with a star-point earthed configuration for enhanced on-site safety.
• Delivers 5.0kVA intermittent duty output and 2.5kVA continuous rated power, suitable for a wide range of power tools and site lighting.
• Fitted with three output sockets: two 16A and one 32A, all at 110V, accommodating multiple tools simultaneously.
• IP44-rated GRP (Glass Reinforced Plastic) moulded casing and lid provides protection against dust ingress and water splashes.
• Thermal overload protection with a resettable mechanism safeguards the transformer and connected equipment.
• Compact and portable design with carry handle for easy transportation between locations on site.
• Pre-wired with a heavy-duty rubber cable and a 13A fused BS plug for immediate connection to mains supply.
• Suitable for both indoor and outdoor use, including in light rain, due to its weatherproof construction.

Specifications

• Part Number: 10962
• Input Voltage: 230V AC, 50Hz
• Output Voltage: 110V AC (centre-tapped to earth)
• Power Rating: 5.0kVA intermittent / 2.5kVA continuous
• Output Sockets: 2 x 16A + 1 x 32A (110V, 2P+E)
• IP Rating: IP44
• Casing Material: Glass Reinforced Plastic (GRP)
• Dimensions: 271mm x 315mm x 345mm
• Cable Length: 1.5m
• Input Plug: 13A fused BS plug

What's Included

• 1 x Connexion 5kVA 110V Site Transformer (10962)
• 1.5m pre-wired mains cable with 13A BS fused plug
