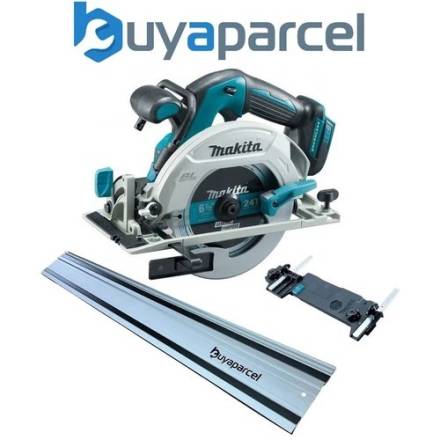

Makita DHS680Z 18V LXT Brushless Cordless Circular Saw 165mm - Body Only

Summary

The Makita DHS680Z is a professional-grade 18V LXT brushless cordless circular saw designed for demanding trade applications including framing, roofing, and general carpentry. Its brushless motor delivers high efficiency and powerful performance, while a compact, magnesium alloy construction keeps weight to a minimum without sacrificing durability. Supplied as body only - compatible with the full Makita 18V LXT battery range.

Features

• Advanced brushless motor provides high efficiency, longer run time per charge, and extended tool life compared to brushed equivalents.
• Automatic Speed Control continuously adjusts cutting speed to suit load conditions - high speed for lighter cuts, higher torque for heavy cuts.
• No-load speed of 5,000 rpm enables fast cutting performance comparable to a corded circular saw.
• Magnesium alloy castings for the base, blade case, and safety cover reduce overall weight while maintaining rigidity.
• 165mm blade tilts up to 50deg for bevel cuts, with a maximum depth of cut of 57mm at 90deg.
• Twin LED job lights and a built-in dust blower keep the cutting line clearly visible during operation.
• Electric brake and soft start for controlled, safer cutting and reduced start-up kick.
• Makita XPT (Extreme Protection Technology) system enhances dust and water resistance for harsh site conditions.
• Battery fuel gauge provides a quick charge level check at a glance.
• Built-in hook allows the saw to be hung on a ladder rung or scaffolding when not in use.

Specifications

• Voltage: 18V Li-ion LXT
• Blade Diameter: 165mm
• No-Load Speed: 5,000 rpm
• Max Depth of Cut at 90deg: 57mm
• Max Depth of Cut at 45deg: 42mm
• Bevel Capacity: 0-50deg
• Blade Bore: 20mm
• Motor Type: Brushless
• Battery: Not included (18V LXT compatible)
• Charger: Not included

What's Included

• DHS680Z circular saw body
• 165mm circular saw blade
• Rip fence
• Dust nozzle
• Hex key
