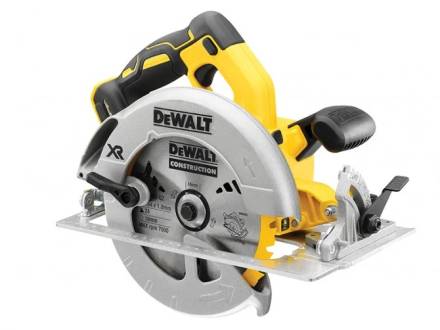

DeWalt DCS570N-XJ 18V XR Brushless 184mm Cordless Circular Saw - Bare Unit

Summary

The DeWalt DCS570N-XJ is an 18V XR brushless cordless circular saw designed for professional general-purpose ripping, cross-cutting, and bevelling of wood and other construction materials. Supplied as a bare unit, it is compatible with all DeWalt 18V XR Li-Ion batteries and chargers, which are sold separately. It delivers corded-class performance in a lightweight, portable package suited to demanding on-site use.

Features

• High-torque brushless motor delivers extended run time, enhanced durability, and improved energy efficiency over brushed alternatives.
• 5,500 rpm no-load speed provides fast, efficient cutting through a wide range of materials.
• 184mm, 24-tooth TCT saw blade with 16mm bore for clean, accurate cuts in timber and construction materials.
• Maximum cutting depth of 64mm at 90deg and 48mm at 45deg, covering the majority of structural timber sections.
• Variable bevel adjustment from 0deg to 57deg with a precise depth scale for quick, repeatable settings without the need for tools.
• Stable block construction ensures low-vibration running for reduced operator fatigue and extended service life.
• Overmoulded auxiliary handle supports safe two-handed operation with optimum balance and control.
• Integrated LED work light improves cut-line visibility in low-light conditions.
• Dust blower clears debris from the cut line for accurate marking and improved visibility.
• Compatible with DeWalt 18V XR guide rail system for precision guided cuts.

Specifications

• Voltage: 18V
• Platform: DeWalt XR Li-Ion
• Motor Type: Brushless
• No-Load Speed: 5,500 rpm
• Blade Diameter: 184mm
• Blade Bore: 16mm
• Blade Teeth: 24T TCT
• Max Cutting Depth at 90deg: 64mm
• Max Cutting Depth at 45deg: 48mm
• Bevel Capacity: 0deg-57deg
• Supply: Bare unit (no battery or charger)

What's Included

• DCS570N circular saw body
• 184mm 24-tooth TCT saw blade
• Rip fence / longitudinal guide
• Dust extraction spout / adapter
• Blade spanner / wrench
