Rothley Herkules 60kg Sliding Door Gear System - 1000mm Door / 2000mm Track

Summary

The Rothley Herkules 60kg is a top-hung sliding door gear system designed for single interior room-dividing doors up to 1000mm wide and 60kg in weight. Supplied as a complete kit with a 2000mm aluminium track (twice the door opening width), it is well suited to domestic and light commercial installations. The system delivers smooth, quiet operation thanks to ball-bearing carriage wheels running on a high-strength aluminium track.

Features

• Top-hung sliding system - no floor track or guide required
• Designed for doors up to 60kg and 1000mm wide
• 2000mm pre-drilled aluminium track included (track length equals twice the door opening)
• Ball-bearing carriage wheels for smooth, quiet sliding action
• Suitable for timber or MDF door panels
• Soffit-mount configuration as standard; wall face mounting possible with optional wall brackets (sold separately)
• Compatible with Rothley Silent-Stop soft-close damper kit (sold separately)
• Suitable for domestic and light commercial applications

Specifications

• SKU: SD/HS6020
• Brand: Rothley
• Range: Herkules 60
• Max door weight: 60 kg
• Door opening width: 1000 mm
• Track length: 2000 mm
• Min door thickness: 22 mm
• Track material: Aluminium
• Mounting: Soffit (wall face mount with optional brackets)

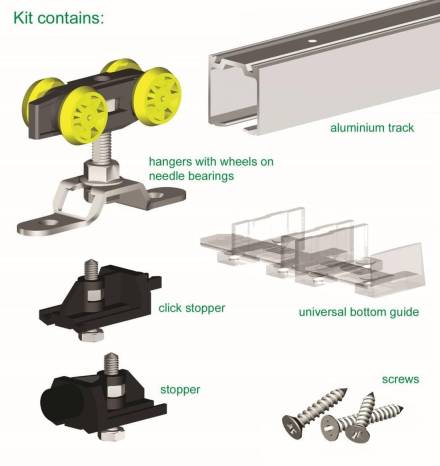

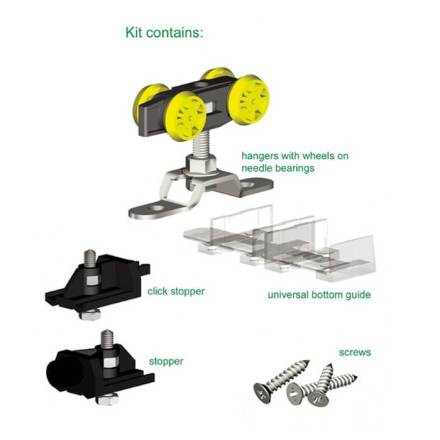

What's Included

• 1 x 2000mm aluminium sliding track
• Carriage wheel hangers
• Bottom door guide
• Fixings and fittings for installation
