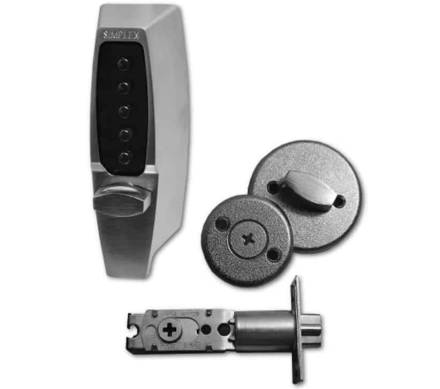

Kaba Simplex 7104 Satin Chrome Mechanical Digital Lock

Summary

The Kaba Simplex 7104 is a fully mechanical push-button digital lock in a satin chrome finish, designed for light commercial and residential timber doors. It provides keyless, battery-free access control via an exterior push-button combination and allows free egress at all times via an interior thumbturn. Ideal for high-traffic areas where key management is impractical.

Features

• Fully mechanical operation - no battery or power supply required
• Single access code, easily programmed via the keypad without removing the lock from the door
• Deadlocking adjustable latch automatically re-locks each time the door closes
• Latch holdback function available
• Free egress at all times via interior thumbturn
• Field reversible - suitable for left- or right-hand doors
• Highly weather resistant construction
• Over 1,000 possible code combinations

Specifications

• Model: Simplex/Unican 7104
• Finish: Satin Chrome
• Backset: Adjustable 60-70 mm
• Door Thickness: 35-57 mm
• Latch: 13 mm deadlocking mortice latch
• Codes: Single access code
• Power: None - fully mechanical
• Dimensions: Approx. 155 x 56 mm

What's Included

• Kaba Simplex 7104 digital lock unit (satin chrome)
• Fixing hardware
