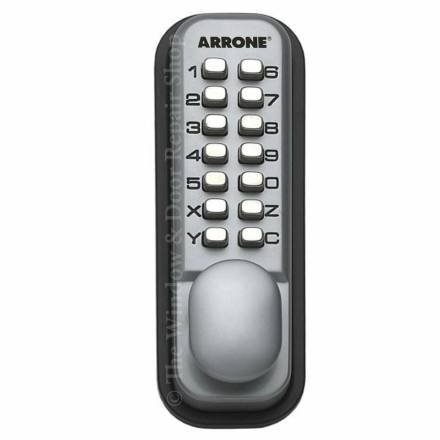

Hoppe Arrone AR/D-195MC Mechanical Digital Push Button Door Lock - Satin Chrome

Summary

The Hoppe Arrone AR/D-195MC is a fully mechanical, keyless push-button digital door lock designed to provide moderate security for low to medium traffic internal areas. Operated entirely without batteries or mains power, it suits storerooms, workshops, plant rooms and offices where convenient, code-controlled access is required. The satin chrome finish gives a professional appearance suitable for commercial and light industrial environments.

Features

• Fully mechanical operation - no batteries or electricity required
• 14-digit pin tumbler keypad offering up to 8,000 possible code combinations
• Access codes of 4 to 7 digits; simple code-change procedure
• Dual-function holdback (on/off) facility allows door to remain unlocked when unrestricted access is needed
• Reversible snib on the backplate for hold-open or always-locked configuration
• Non-handed - suitable for left- and right-hand opening doors
• Egress via pad lever from the inside; code entry from the outside
• Fire tested to BS EN 1634 Part 1; assessed for use on 30- and 60-minute timber fire doors
• Heavy-duty zinc construction with rubber backplates
• Suitable for timber or metal doors 33 mm to 55 mm thick

Specifications

• Model: AR/D-195MC
• SKU: 87128205
• Finish: Satin Chrome
• Keypad: 14-digit pin tumbler
• Code length: 4-7 digits
• Possible combinations: 8,000
• Backset: 60 mm (tubular deadlocking latch)
• Door thickness: 33 mm - 55 mm
• Handing: Non-handed (left or right)
• Fire rating: BS EN 1634 Part 1 (30 and 60 min timber fire doors)
• Internal egress: Pad lever

What's Included

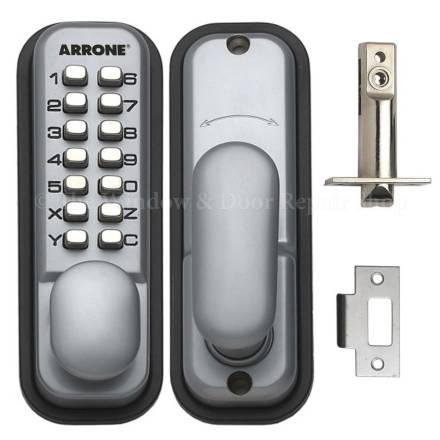

• AR/D-195MC digital push button lock (external and internal sections)
• 60 mm backset tubular deadlocking latch
• All fixings required for installation
• Comprehensive fitting instructions
