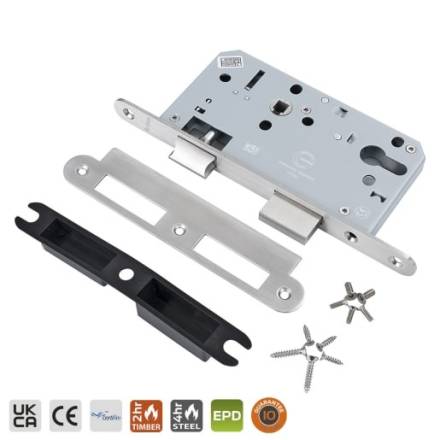

Briton 5720 DIN Euro Profile Cylinder Mortice Sashlock 60mm Backset Stainless Steel

Summary

The Briton 5720 is a heavy-duty DIN standard euro profile cylinder mortice sashlock designed for lockable doors where lever furniture is used to withdraw the latchbolt. With a 60mm backset and 72mm centres, it conforms to BS 8300 guidance and is suitable for commercial and high-traffic timber or steel door applications. Fire-tested to EN 1634-1, it is approved for use on FD30 and FD60 fire doors when fitted with the Briton 5000.IP intumescent kit.

Features

• DIN standard euro profile cylinder mortice sashlock for use with lever furniture
• Deadbolt operated by euro profile cylinder - one turn throws the bolt 20mm for secure locking
• Quick reversible profiled latch for flexible handing on installation
• Grade 316 stainless steel single-piece forend (square or round options available)
• Galvanised steel lockcase with satin nickel plating for corrosion resistance
• Bolt-through fixing holes to DIN 18251
• Fire tested to EN 1634-1; Certifire approved for fire doors up to 1hr timber / 4hr steel with Briton 5000.IP intumescent kit
• 10-year guarantee

Specifications

• Backset: 60mm
• Centres: 72mm
• Bolt throw: 20mm (single turn of cylinder)
• Forend material: Grade 316 stainless steel
• Lockcase finish: Galvanised steel with satin nickel plating
• Standard: DIN 18251
• Fire rating: EN 1634-1 (FD30 and FD60 with 5000.IP kit)
• SKU: 5720.60.SS

What's Included

• 1 x Briton 5720 mortice sashlock case (60mm backset, stainless steel forend)
