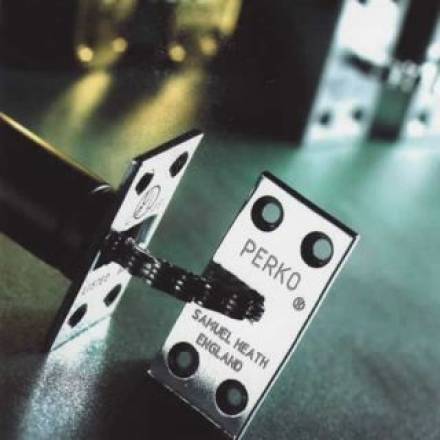

Samuel Heath Perko R2 Concealed Chain Door Closer - Chrome Plated Rectangular Plates

Summary

The Samuel Heath Perko(R) R2.CP is a concealed chain door closer finished in polished chrome plate, fitted with rectangular solid brass anchor plates. Designed for internal doors up to 50.8 kg in light to medium use, it provides automatic, quiet closing while remaining fully hidden when the door is shut. It is a trusted specification choice for commercial, leisure, and domestic projects worldwide.

Features

• Fully concealed when door is closed - eliminates the need for surface-mounted closers
• Polished chrome plated (CP) rectangular anchor plates
• Solid brass anchor plates for durability and premium finish
• Precision-engineered chain for smooth and lasting service
• Adjustable closing tension - anchor plates rotated to increase or decrease spring force
• Reversible for left- or right-hand swing doors
• Mechanism housed in cylindrical powder-coated metal body
• Suitable for fire door applications - fire tested to industry standards

Specifications

• Model: Perko(R) R2.CP
• Plate style: Rectangular
• Finish: Chrome Plated (CP)
• Anchor plates: Solid brass
• Maximum door weight: 50.8 kg (112 lb) - light to medium use
• Mechanism housing: Cylindrical, powder-coated
• Installation hole: 1" diameter, minimum 5-3/4" deep into door edge
• Manufacturer: Samuel Heath and Sons

What's Included

• 1 x Perko R2.CP concealed chain door closer unit
• Rectangular chrome plated anchor plates
• Fixing screws
• Full fitting instructions
