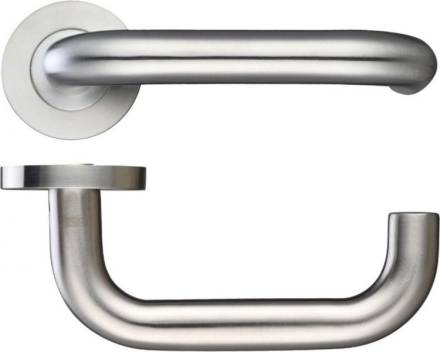

Zoo Hardware ZPS030SS Satin Stainless Steel 19mm Return to Door Lever on Round Rose

Summary

The Zoo Hardware ZPS030SS is an architectural-grade, 19mm tubular return-to-door (RTD) sprung lever handle mounted on a screw-on round rose, finished in satin stainless steel (Grade 304). Designed for both domestic and commercial applications, it complies with DDA requirements and is fire-door rated for 30 and 60 minute timber doors. Sold as a pair complete with all fixings and spindle.

Features

• 19mm diameter hollow tubular lever with return-to-door profile - curved design prevents clothing snagging
• Satin stainless steel finish on Grade 304 base material - 5-year finish guarantee
• 10-year mechanical guarantee covering internal mechanisms
• Screw-on concealed fix with 8mm thick sprung round rose (50 x 8mm)
• Bolt-through fixings included for secure installation
• Heso spindle included
• 200,000 cycle tested
• Suitable for 35-54mm thick timber doors
• Meets BS EN 1906:2010 Grade 3, BS EN 1670:2007 Grade 5 (Corrosion), BS EN 1634-1, and BS8300 DDA design requirements
• Fire tested - suitable for FD30 and FD60 rated timber doors

Specifications

• SKU: ZPS030SS
• Finish: Satin Stainless Steel
• Material: Grade 304 Stainless Steel
• Lever Diameter: 19mm tubular
• Lever Length: 128.5mm
• Projection: 66mm
• Rose: 50 x 8mm round sprung, screw-on
• Door Thickness: 35-54mm
• Standards: BS EN 1906:2010 Grade 3 | BS EN 1670:2007 Grade 5 | BS EN 1634-1 | BS8300 | FD30/FD60
• Cycle Tested: 200,000 cycles
• Mechanical Guarantee: 10 years
• Finish Guarantee: 5 years

What's Included

• 1 pair of return-to-door lever handles on round rose
• Bolt-through fixings
• Heso spindle
• Allen key and grub screw
