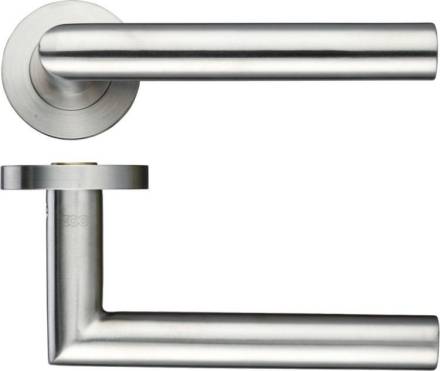

Zoo Hardware ZPS Mitred Lever on Rose Satin Stainless Steel - 19mm

Summary

The Zoo Hardware ZPS010SS is a 19mm tubular mitred lever handle on a screw-on round rose, finished in satin stainless steel (Grade 304). Designed for both residential and commercial interiors, it combines a clean, contemporary profile with robust fire-rated performance. Sold as a pair and supplied complete with bolt-through fixings.

Features

• 19mm diameter tubular lever construction with mitred profile
• Satin stainless steel finish on Grade 304 stainless steel base material
• 50mm x 8mm round sprung rose with screw-on concealed fixing
• Heso spindle with bolt-through fixings included
• Suitable for door thicknesses of 35-54mm
• Fire rated to BS EN 1634-1 for 30 and 60 minute timber doors
• Tested to BS EN 1906:2010 Grade 3 performance standard
• Corrosion resistance rated to BS EN 1670 Grade 5
• 200,000 cycle tested for long-term durability
• 10-year mechanical guarantee

Specifications

• SKU: ZPS010SS
• Lever Diameter: 19mm
• Lever Length: 120.5mm
• Rose Diameter: 50mm
• Projection: 66mm
• Rose Thickness: 8mm
• Door Thickness Range: 35-54mm
• Material: Grade 304 Stainless Steel
• Finish: Satin Stainless Steel
• Standard: BS EN 1906:2010 Grade 3 / BS EN 1670 Grade 5 / BS EN 1634-1 FD30-60

What's Included

• 1 pair of mitred lever handles on rose
• Bolt-through fixings
