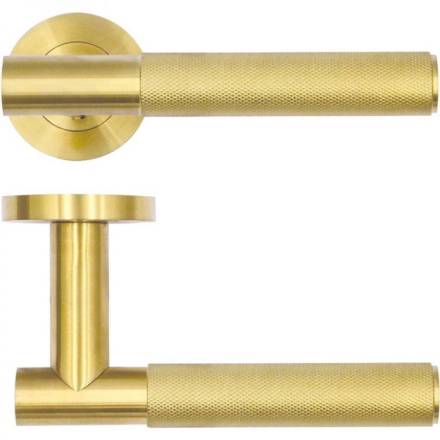

Zoo Hardware Rosso Tecnica Orta Knurled Lever on Round Rose - PVD Satin Brass (Pair)

Summary

The Orta Lever on Round Rose is part of Zoo Hardware's exclusive Rosso Tecnica range - a contemporary, European-inspired collection of architectural door furniture. Manufactured from Grade 304 stainless steel with a durable PVD Satin Brass finish, these lever handles are equally suited to residential and commercial applications, including rated fire doors. Supplied as a pair with all necessary fixings.

Features

• T-bar knurled grip lever design for a distinctive, contemporary aesthetic
• Cast stainless steel round rose with screw-on cover for a clean, concealed finish
• Sprung rose mechanism - no additional springing required
• 4-point fixing inner rose for enhanced stability
• Grub screw located on the underside of the lever; improved allen key supplied for easier installation
• Suitable for FD30 and FD60 rated fire doors (tested to BS EN 1634-1)
• Meets BS EN 1906 Grade 3 performance standard
• Suitable for both internal and external use
• Supplied without plastic packaging - no poly-bags used in the Rosso Tecnica range
• Full range of matching Rosso Tecnica accessories available (escutcheons, bathroom turns, etc.)

Specifications

• Finish: PVD Satin Brass
• Material: Grade 304 Stainless Steel
• Rose Diameter: 50mm
• Rose Thickness: 8mm
• Lever Length: 135mm
• Projection: 73mm
• Door Thickness: 35-54mm
• Fire Rating: FD30 / FD60
• Standard: BS EN 1906 Grade 3

What's Included

• 1 pair of Orta lever handles on round rose
• Bolt-through fixings
• Wood screw fixings
• Spindle
• Allen key
