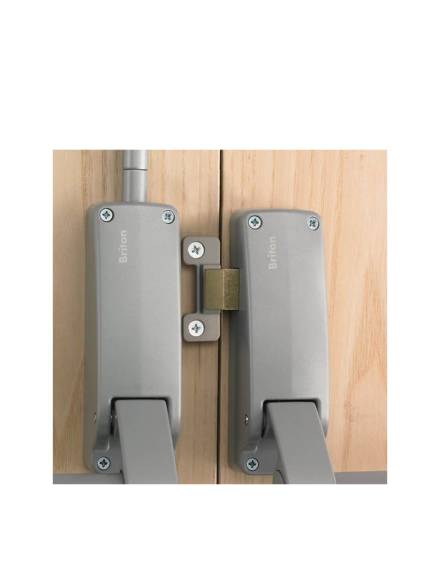

Briton 377.R.SE Push Bar Panic Exit Double Door Set - Site Reversible

Summary

The Briton 377.R.SE is a push bar panic exit set designed for rebated double door applications, supplied as a complete, convenient pack. Manufactured by Briton (an Allegion brand), it is engineered for use in public and commercial buildings where EN 1125-compliant panic exit hardware is required. The site-reversible (SE) configuration allows handing to be determined on site, reducing installation complexity.

Features

• Complete double door set - comprises a Briton 376 vertical panic bolt, 378.R reversible rim panic latch, and 378DDS double door strike in a single pack
• Designed for rebated double door applications with the rim latch fitted to the first opening leaf
• Site-reversible (SE) - can be handed left or right on site
• Anti-thrust device prevents unauthorised retraction of the latch bolt
• Three-point locking provides enhanced security for double door openings
• Suitable for use on fire and smoke doors
• Adjustable top and bottom shoots to accommodate a range of door openings
• Compliant with EN 1125 for panic exit applications in public buildings
• Suitable for shops, schools, hospitals, cinemas and other public areas

Specifications

• Standard: EN 1125 (Panic Exit Hardware)
• Door type: Timber or metal
• Door width per leaf: 665 mm minimum / 1300 mm maximum
• Maximum door height: 2500 mm
• Minimum stile width: 78 mm (13 mm rebates) / 90 mm (25 mm rebates)
• Handing: Site reversible (R/H as supplied, convertible on site)
• Application: Rebated double doors
• Finish: Silver enamel
• Country of Origin: Turkey

What's Included

• 1 x Briton 376 Vertical Panic Bolt
• 1 x Briton 378.R Reversible Rim Panic Latch
• 1 x Briton 378DDS Double Door Strike
• Fixing hardware
