Wera 6004 Joker M Self-Setting Adjustable Spanner 13-16mm

Summary

The Wera 6004 Joker M is a self-setting adjustable spanner covering all metric and imperial hexagon sizes in the 13-16 mm (1/2-5/8 in.) range. Designed for professional tradespeople, it eliminates the need to carry multiple fixed spanners by automatically gripping the correct size on contact. Its integrated ratchet function and compact single-arm head allow fast, efficient torque application even in restricted access areas.

Features

• Automatically and continuously grips hexagon screws and bolts - no manual size adjustment required.

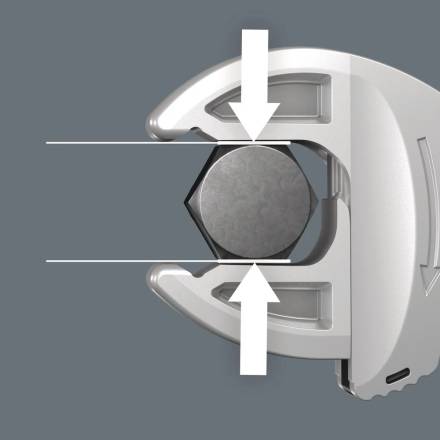

• Parallel smooth jaws distribute surface pressure evenly, significantly reducing the risk of rounding bolt or screw heads.
• Integrated lever mechanism securely clamps the fastener between the jaws when torque is applied, preventing slippage and damage.

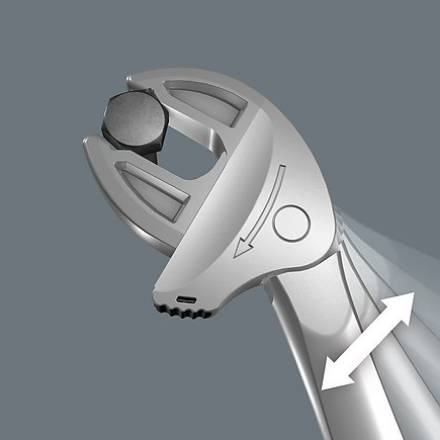

• Mechanical ratchet function enables fast, consistent screwdriving without the need to remove and reposition the spanner.
• Return angle of only 30deg achieved via corner-width rectangular prisms in the jaw, ideal for tight spaces.
• Single-arm design keeps the head compact, making the tool highly practical in confined working areas.
• Covers metric sizes 13, 14, 15, and 16 mm, and imperial equivalents 1/2", 17/32", 9/16", 19/32", and 5/8".
• Replaces several individual fixed spanners in a single versatile tool.

Specifications

• Model: Wera 6004 Joker M
• Part Number: 05020103001
• Wrench Size Range: 13-16 mm / 1/2-5/8 in.
• Total Length: 188 mm
• Head Thickness: 12.4 mm
• Return Angle: 30deg
• Drive Type: Single-arm open-end with ratchet

What's Included

• 1 x Wera 6004 Joker M Self-Setting Spanner (13-16 mm)
