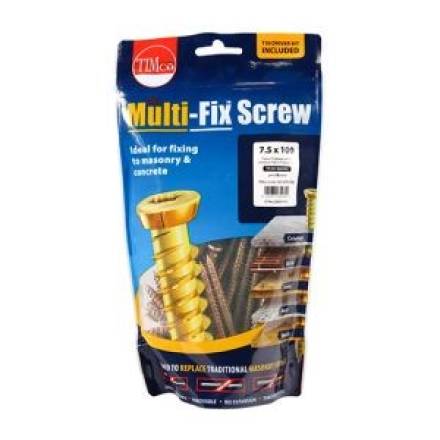

TIMCO Multi-Fix TX Concrete Screw Flat Countersunk Zinc and Yellow 7.5 x 100mm

Summary

The TIMCO Multi-Fix TX Concrete Screw is a rapid and effective light-duty anchoring system designed for fixing window frames, door frames, timber battens, metal profiles and panels directly into masonry substrates. As a non-expansion, through-fixing anchor, it replaces traditional nylon frame plugs and hammer fixings with a single, efficient solution. Suitable for trade professionals requiring reliable, repeatable fixing performance across a wide range of masonry types.

Features

• TX30 Torx drive recess reduces driver wear and prevents camming-out
• Flat countersunk head with 5 locking ribs for a flush, secure seating
• Serrated V-threads achieve optimum insertion into all masonry types
• Deep high-low thread profile provides high pull-out resistance and efficient debris extraction
• Non-expansion anchor - eliminates risk of substrate splitting; suitable for softer materials such as aerated blocks
• Zinc and yellow plated finish for corrosion resistance; suitable for interior and exterior use
• Suitable for concrete, solid brick, perforated brick, hollow blocks, natural stone and wood
• TX30 driver bit included in each box

Specifications

• Diameter: 7.5 mm
• Length: 100 mm
• Head type: Flat countersunk
• Drive: TX30 Torx
• Finish: Zinc and yellow plated
• Drill hole (brick/block): 6.0 mm
• Drill hole (concrete/high density): 6.5 mm
• Maximum fixture thickness: 50 mm
• Fixture clearance hole: 8 mm
• SKU: 00100TCON

What's Included

• TIMCO Multi-Fix TX Concrete Screws 7.5 x 100 mm (quantity per pack as ordered)
• TX30 driver bit
