TIMCO Metal Construction Heavy Section Tek Screw Hex EPDM Washer Self-Drilling Exterior 5.5 x 65mm

Summary

The TIMCO H65W16B is a heavy section self-drilling TEK screw designed to fix metal cladding, brackets and metalwork directly to hot-rolled steel sections up to 12mm thick without pre-drilling. Supplied with a 16mm EPDM washer, it is suited to exterior structural and roofing applications where a weather-resistant, durable fixing is essential. Sold in boxes of 100.

Features

• Self-drilling tip eliminates the need to pre-drill - drills directly into steel up to 12mm thick
• Hex head (8mm AF) with integrated 16mm EPDM washer for a weatherproof seal on installation
• Fine self-tapping metric thread for secure engagement in heavy section steel
• Partially threaded shank to allow clamping action against the fixed material
• Silver Ruspert (Silver Organic) exterior coating - resists over 1,000 hours of salt spray testing
• Longer drill point than standard TEK screws to cope with thick steel sections
• Meets recognised industry standards for heavy section metal construction fasteners

Specifications

• SKU: H65W16B
• Diameter: 5.5mm
• Length: 65mm
• Head Type: Hex (8mm AF)
• Washer: 16mm EPDM
• Thread: Fine metric self-tapping, partial thread
• Maximum Steel Thickness: 12mm
• Maximum Fixing Thickness: 42mm
• Finish: Silver Ruspert (Silver Organic exterior coating)
• Box Quantity: 100
• UPC: 5055017532476

What's Included

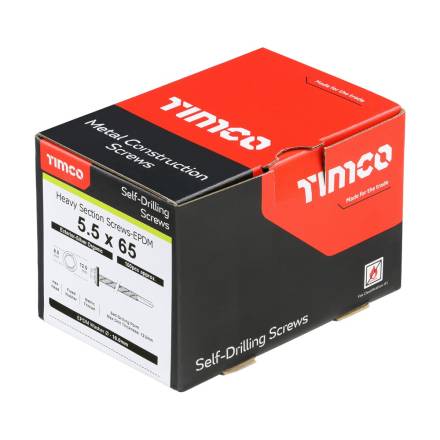

• 100 x TIMCO 5.5 x 65mm Heavy Section Self-Drilling TEK Screws with 16mm EPDM Washers
