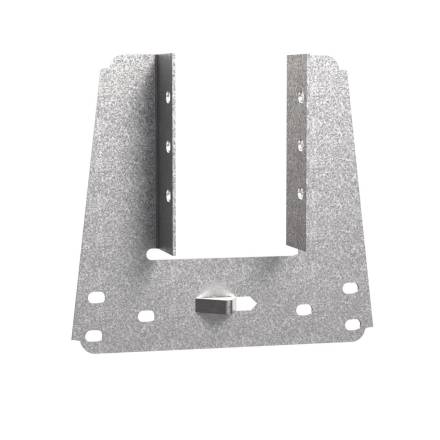

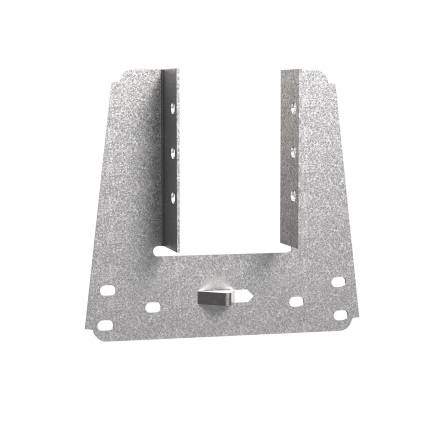

Simpson Strong-Tie TCP50 50mm Pre-Galvanised Truss Clip

Summary

The Simpson Strong-Tie TCP50 is a 50mm pre-galvanised mild steel truss clip designed to attach girders, trusses and rafters securely to wall plates. It provides essential wind restraint and resists uplift forces wherever one structural member crosses another, making it a standard fixing in timber-framed roof construction. Suitable for general-purpose and strongback attachment applications throughout the build.

Features

• Attaches girders, trusses and rafters to wall plates for reliable wind restraint
• Resists uplift forces wherever one structural member crosses another
• Speed prong allows temporary attachment during positioning, speeding up installation
• Obround nail holes for easier and faster nail driving
• Made from 0.9mm pre-galvanised mild steel for corrosion protection
• Suitable for general-purpose, strongback and all-purpose tie applications
• CE marked with European Technical Assessment - compliant with current building regulations
• Characteristic load capacity of 3.3kN when installed with specified fasteners

Specifications

• SKU: TCP50
• Size: 50 x 65mm
• Material: Pre-galvanised mild steel
• Gauge: 0.9mm
• Timber width: 50mm
• Characteristic capacity: 3.3kN
• Required fasteners: N3.75x30 nails (all holes must be filled)
• Certification: CE marked, European Technical Assessment

What's Included

• 1 x Simpson Strong-Tie TCP50 Truss Clip (fasteners not included)
