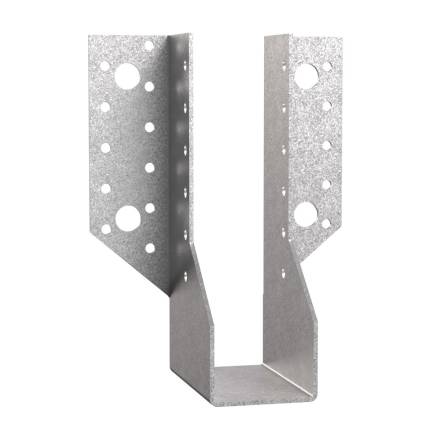

Simpson Strong-Tie SAE380/50/2/25 50mm Heavy U Hanger Pack of 25

Summary

The Simpson Strong-Tie SAE380/50/2 is a heavy-duty face-fix U hanger designed for structural timber connections demanding superior load capacity. Manufactured from pre-galvanised mild steel and supplied in a pack of 25, it is ideal for securing 50mm wide joists in demanding residential and commercial construction applications. The SAE range is the professional's choice where standard hangers are insufficient.

Features

• Heavy-duty face-fix hanger from the SAE range, engineered for applications requiring additional strength beyond standard joist hangers
• Nailed using square twist nails; bolt holes provided for 12mm fasteners into the header face for enhanced load performance
• Suitable for timber-to-timber, timber-to-LVL, and timber-to-masonry connections (the latter using resin anchors and M12 studs)
• Hanger depth should be at least 60% of the carried member depth to prevent rotation, unless additional lateral restraint is provided at the top of the carried member
• Made from pre-galvanised mild steel blanks bent to suit common timber widths - the same hanger profile can accommodate multiple joist heights
• Compatible with solid sawn timber joists and purlins
• Supplied as a pack of 25

Specifications

• SKU: SAE380/50/2/25
• Width: 50mm
• Blank depth: 380mm
• Material thickness: 2.0mm
• Material: Pre-galvanised mild steel
• Fasteners: Square twist nails (primary); 12mm bolts (face bolt holes)
• Pack quantity: 25
• Brand: Simpson Strong-Tie

What's Included

• 25 x Simpson Strong-Tie SAE380/50/2 Heavy U Hangers
