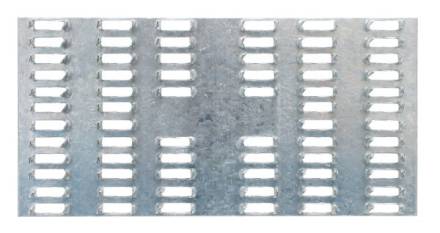

Simpson Strong-Tie MP36 Galvanised Mending Plate 76 x 152mm (3 x 6in) 20-Gauge

Summary

The Simpson Strong-Tie MP36 is a 76 x 152 mm (3 x 6 in) pronged mending plate manufactured from 20-gauge G90 galvanised steel, designed for quick and reliable wood-to-wood connections. Ideal for general repair and fix-up work on timber framing, fencing, and similar applications, it provides a secure joint without the need for nails or notching. Suitable for tradespeople and DIY users requiring a fast, corrosion-resistant timber connector.

Features

• Pronged design embeds directly into timber - no nails or wood notching required

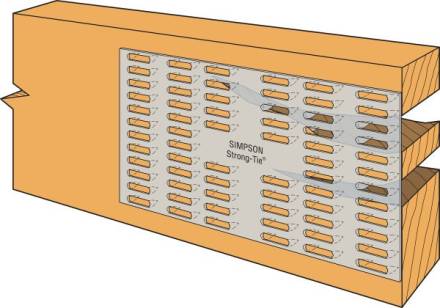

• Align plate over the joint using the moulded arrows, then hammer into place using a wood block
• G90 galvanised finish for enhanced corrosion resistance
• Teeth on the underside enhance grip and holding power across the joint
• Suitable for use on the wide or narrow face of timber members
• For non-structural applications only - not rated for load-bearing or truss use
• Simple, versatile solution for a wide range of timber repair and connection tasks

Specifications

• Part Number: MP36
• Dimensions: 76 x 152 mm (3 in. W x 6 in. L)
• Material: Steel
• Gauge: 20 ga
• Finish: G90 Galvanised
• Application: Wood-to-wood, non-structural connections

What's Included

• 1 x Simpson Strong-Tie MP36 Mending Plate
