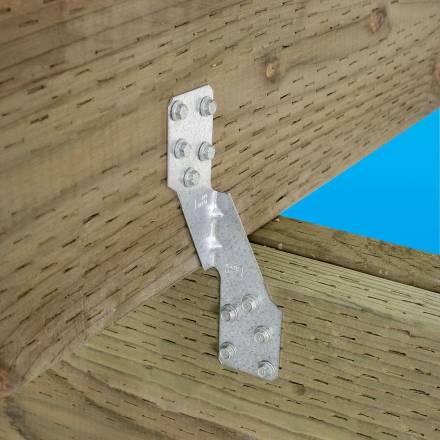

Simpson Strong-Tie H2.5A Single-Sided Hurricane Tie - 18-Gauge Galvanised

Summary

The Simpson Strong-Tie H2.5A is a single-sided hurricane tie engineered to create strong rafter/truss-to-top-plate connections in timber-framed structures. Manufactured from 18-gauge galvanised steel, it forms part of a continuous load path to resist both uplift and lateral forces generated by high winds and seismic activity. Suitable for residential and light commercial wood-frame construction where wind uplift protection is required.

Features

• Single-sided design connects rafter or truss directly to the wall top plate
• Resists moderate uplift and lateral loads as part of a continuous load path
• Symmetrical profile - no separate left- and right-hand versions required
• 18-gauge galvanised steel for reliable corrosion resistance
• Engineered for simple, straightforward nail or screw installation
• Commonly specified for residential and light commercial timber framing
• Supports code-compliant construction in high-wind and storm-prone regions

Specifications

• Model: H2.5A
• Material: 18-gauge steel
• Finish: Galvanised
• Connection: Rafter/truss to wall top plate
• Load resistance: Uplift and lateral
• Fasteners to rafter/truss: (5) 0.131" x 2-1/2" nails or (6) SD9112 screws
• Fasteners to top plate: (5) 0.131" x 2-1/2" nails or (6) SD9112 screws

What's Included

• Simpson Strong-Tie H2.5A Hurricane Tie (quantity as ordered - fasteners not included)
