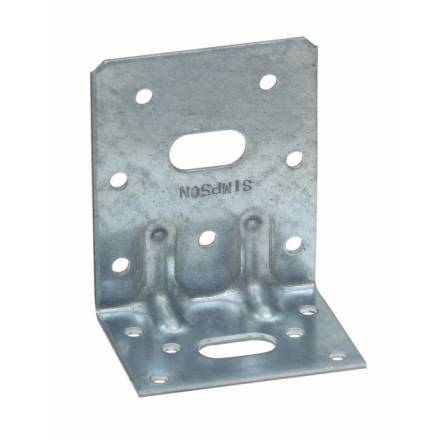

Simpson Strong-Tie E5/2C50 Heavy Duty Reinforced Angle Bracket 65 x 75mm Pre-Galvanised

Summary

The Simpson Strong-Tie E5/2C50 is a heavy-duty reinforced angle bracket manufactured from pre-galvanised mild steel, designed for the general connecting and jointing of timber members. Suitable for structural applications in framing and wood-frame construction, it delivers robust support and long-term corrosion resistance. A reliable choice for both trade and site use wherever timber-to-timber or timber-to-structure connections are required.

Features

• Heavy-duty reinforced construction for structural timber connections
• Reinforced ribs provide additional rigidity and load resistance
• Pre-galvanised mild steel finish for corrosion and rot resistance
• Suitable for general joining of timbers at 90deg
• Compatible with solid wood, glued-laminated timber, concrete and steel supporting members
• Suitable for use with composite lumber, trusses, profiles and cladding uprights
• Applications include rafter anchors, cantilevers, headers, small truss fastening and cladding plates
• No special tools required for installation

Specifications

• Product Code: E5/2C50
• Width 1 (W1): 48 mm
• Width 2 (W2): 75 mm
• Length (L): 65 mm
• Material Thickness: 2.0 mm
• Material: Pre-galvanised mild steel
• Finish: Pre-galvanised (S250GD + Z275 to NF EN 10346)
• Brand: Simpson Strong-Tie

What's Included

• 1 x Simpson Strong-Tie E5/2C50 Reinforced Angle Bracket (also available in box quantity of 50)
